LDAP
This page describes how to connect with LDAP directory services.
You can connect pathfinder to a LDAP directory for authentication, user and group management.

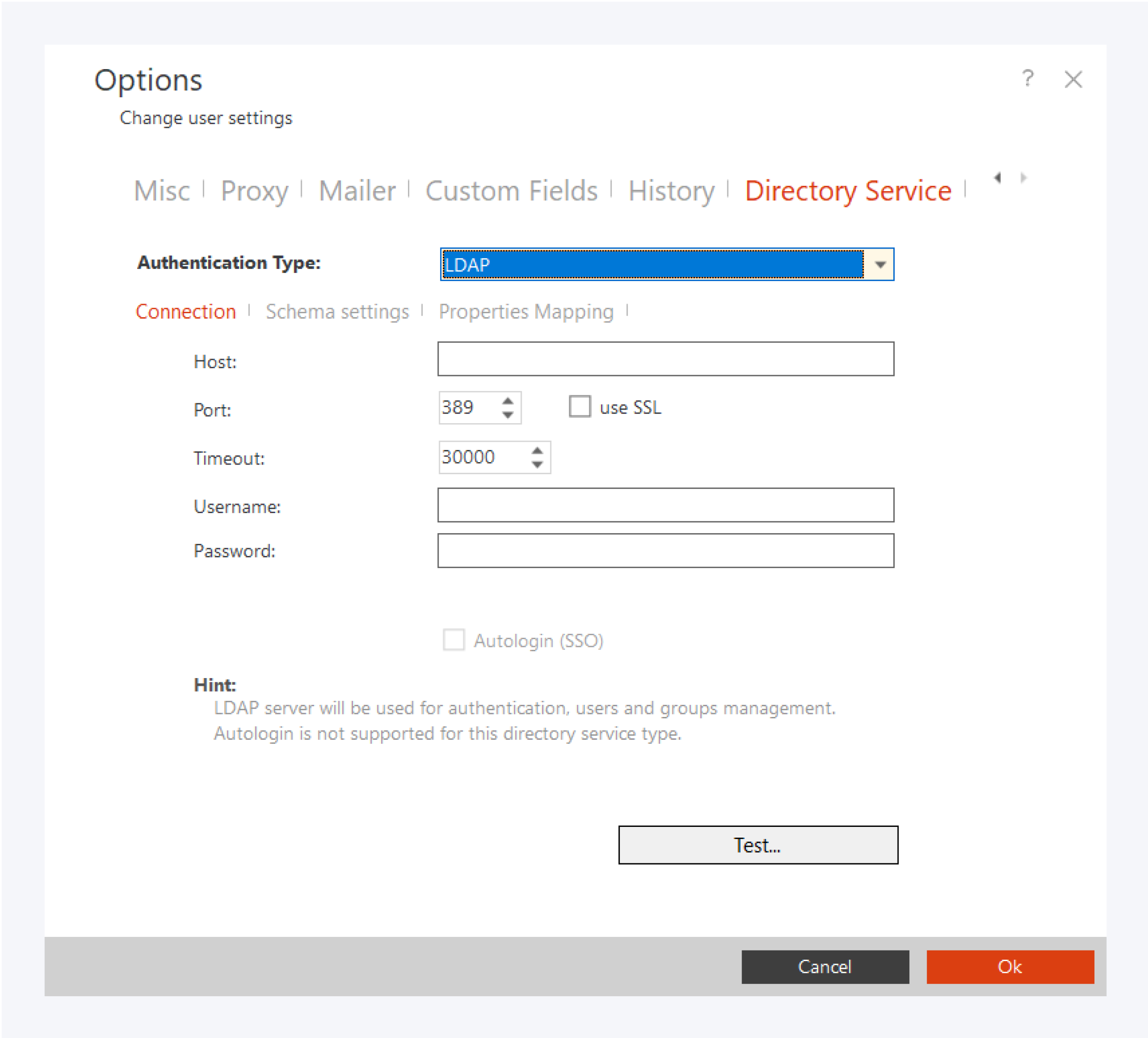

Connecting to LDAP
Admin privileges are required to configure the directory services and apply changes.
Click on test to check connectivity to the external directory.
Click on OK to save your changes.
Please see the Configuration for LDAP jumpcloud and Configuration for LDAP forumsys table below for more information on the required fields.
Autologin is not supported for this directory service type.
Configuration for Jumpcloud (LDAP)
Connection | |
Host | |
Port | 389 |
use SSL | No |
Timeout | 3000 |
Username | uid=<your_binduser>,ou=Users,o=<your_orgID>,dc=jumpcloud,dc=com |
Password | <your_password> |
Schema settings | |
Base DN | o=<your_orgID>,dc=jumpcloud,dc=com |
User bind DN | uid={0},ou=Users,o=<your_orgID>,dc=jumpcloud,dc=com |
User DN | |
Group DN | |
Properties Mapping | |
User search string | person |
Groups search string | groupOfNames |
Username | uid |
User First Name | givenName |
User Last Name | sn |
User Description | description |
User Group identifier | uid |
User groups | memberOf |
User E-Mail | |
User Primary group ID | |
User object Sid | objectSid |
GroupName | cn |
Group Description | description |
Group Users | member |
Group identifier | cn |
Object identifier | entryUUID |
Primary group token | |
Group object Sid | objectSid |
Configuration for forumsys (LDAP)
Connection | |
Host | |
Port | 389 |
use SSL | No |
Timeout | 3000 |
Username | cn=read-only-admin,dc=example,dc=com |
Password | password |
Schema settings | |
Base DN | dc=example,dc=com |
User bind DN | uid={0},dc=example,dc=com |
User DN | |
Group DN | |
Properties Mapping | |
User search string | person |
Groups search string | groupOfUniqueNames |
Username | uid |
User First Name | cn |
User Last Name | sn |
User Description | description |
User Group identifier | uid |
User groups | memberOf |
User E-Mail | |
User Primary group ID | |
User object Sid | objectSid |
GroupName | cn |
Group Description | description |
Group Users | uniqueMember |
Group identifier | cn |
Object identifier | entryUUID |
Primary group token | |
Group object Sid | objectSid |
