Active Directory

This page describes how to connect with Active Directory services.

You can connect pathfinder to an Active Directory server for authentication, user and group management.


User information includes the person's full name, username, password, email address and other personal information.

Group information includes the name of the group and the users that belong to the group.

The internal directory stores user and group information in the pathfinder database. You can also connect to external user directories.

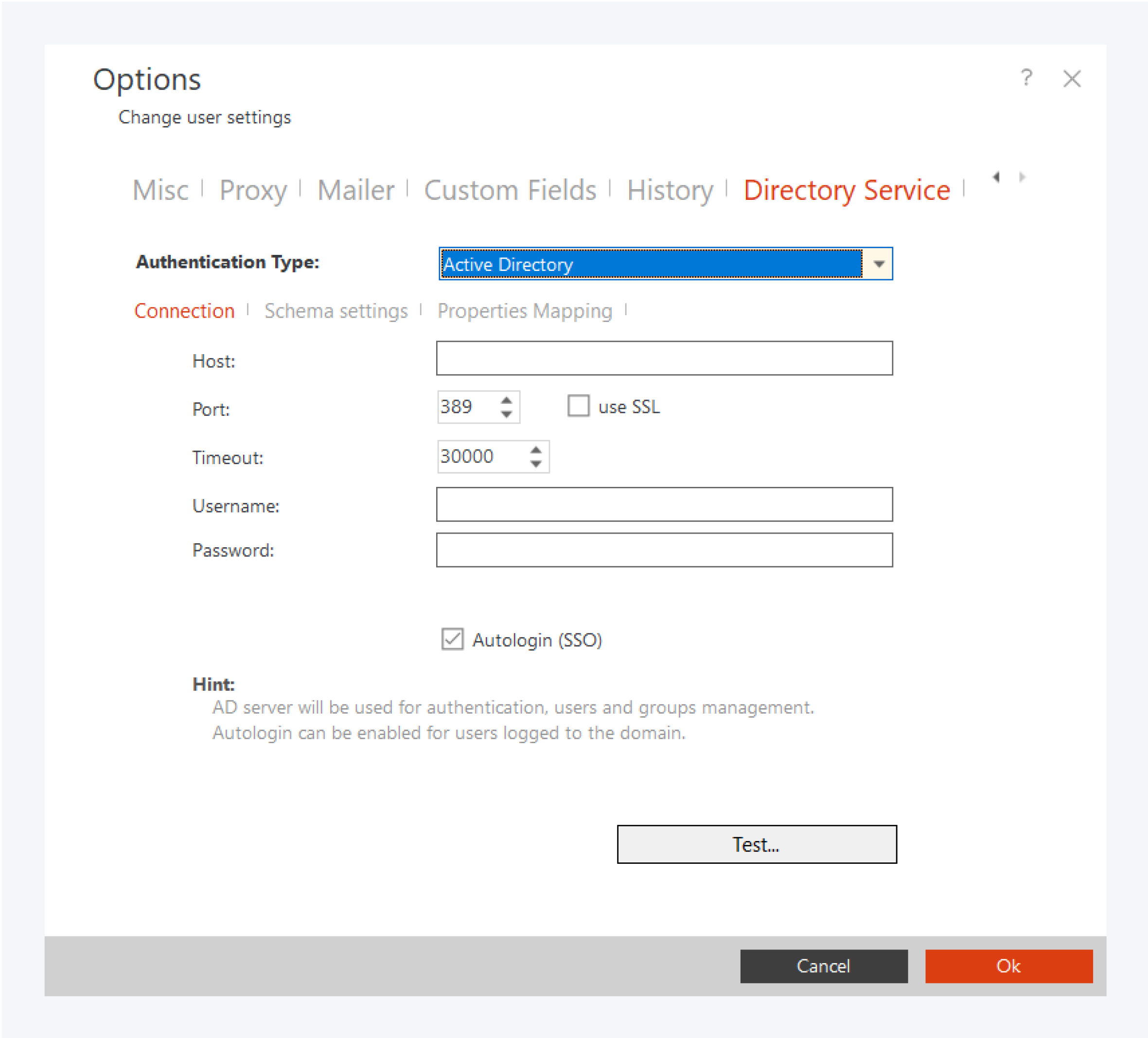

Connecting to a Microsoft Active Directory

Admin privileges are required to configure the directory services and apply changes.

Click on test to check connectivity to the external directory.

Click on OK to save your changes.

Please see the Configuration for Active Directory table below for more information on the required fields.

When using Active Directory Autologin (SSO) can be enabled for users logged to the domain.


Configuration for Active Directory

Connection

Host

<your_host>

Port

636 (SSL) or 389 (no SSL)

use SSL

Yes

Timeout

3000

Username

<your_binduser>@<your.domain.com>

Password

<your_password>

Autologin (SSO)

Schema settings

Base DN

dc=<your>,dc=<domain>,dc=<com>

User bind DN

{0}@<your.domain.com>

User DN

cn=Users (or cn=user or the name of your users folder)

Group DN

cn=Groups (or cn=Group or the name of your group folder)

Properties Mapping

User search string

person

Groups search string

group

User name

sAMAccountName

User First Name

givenName

User Last Name

sn

User Description

description

User Group identifier

User Groups

memberOf:1.2.840.113556.1.4.1941:

User E-Mail

mail

User Primary group ID

PrimaryGroupID

User object Sid

objectSid

GroupName

name

Group Description

description

Group Users

member:1.2.840.113556.1.4.1941:

Group identifier

Object identifier

objectGUID

Primary group token

PrimaryGroupToken

Group object Sid

objectSid

If you are not using or want to ignore nested groups membership remove :1.2.840.113556.1.4.1941: from User Groups and Group Users.

For reference see Search Filter Syntax.
