Report: Network Path

The network path report includes the network paths for all included ports.

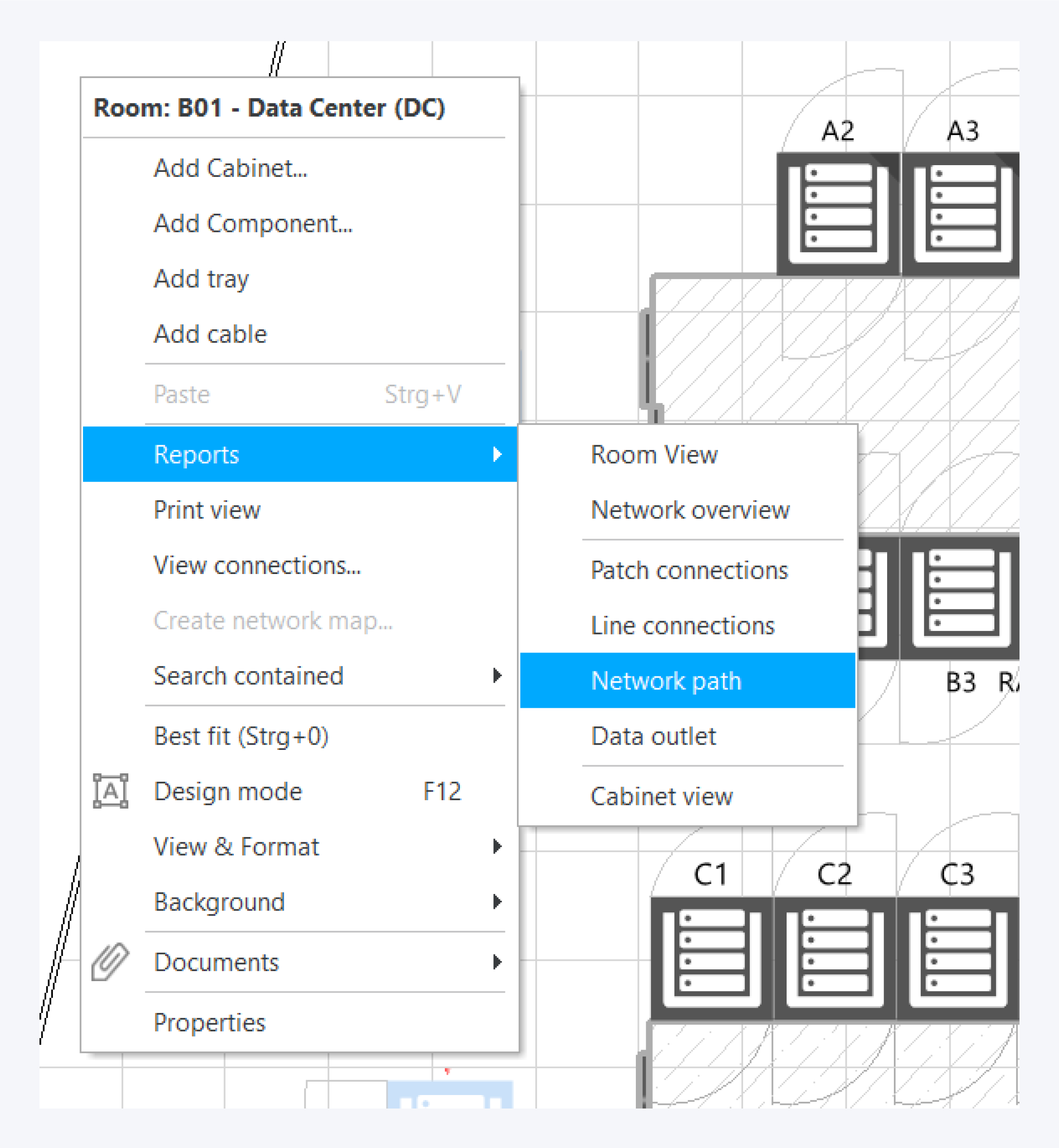

Right click on a cabinet, rack or component to open the context menu.

Select Network path from the reports options.


Generating the report

You can create a network path report for any component, cabinet or location using the reports option from the context menu.


Report settings

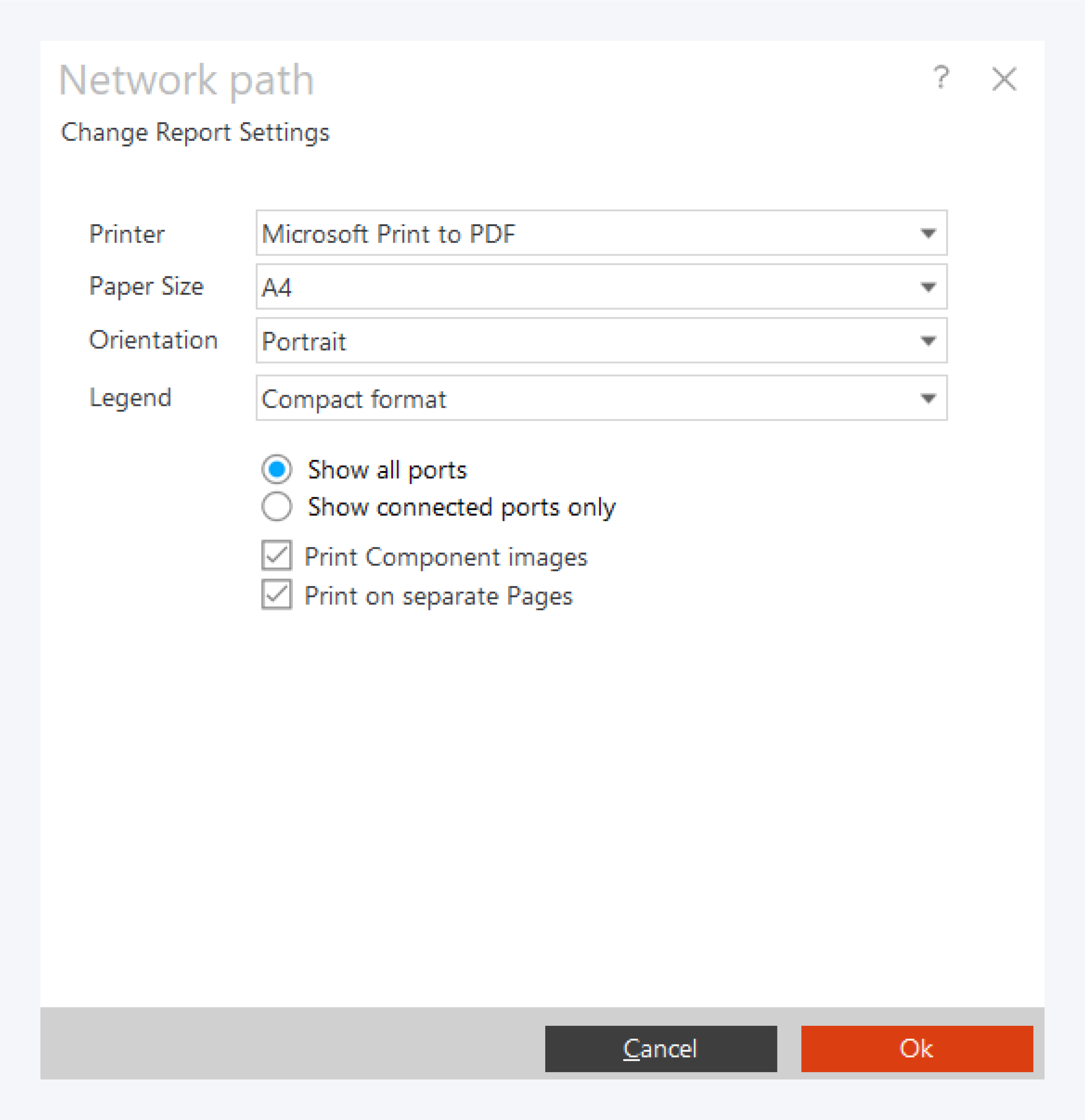

In the report settings, you can choose the printer, paper size and orientation.

  • You can select how the legends are displayed.

  • You can choose between displaying all ports or connected ports only.

  • Finally you can check the two boxes to display the component images and print of separate pages respectively.



Click on OK to generate your network path report.


Results

Report Network Path_03.png

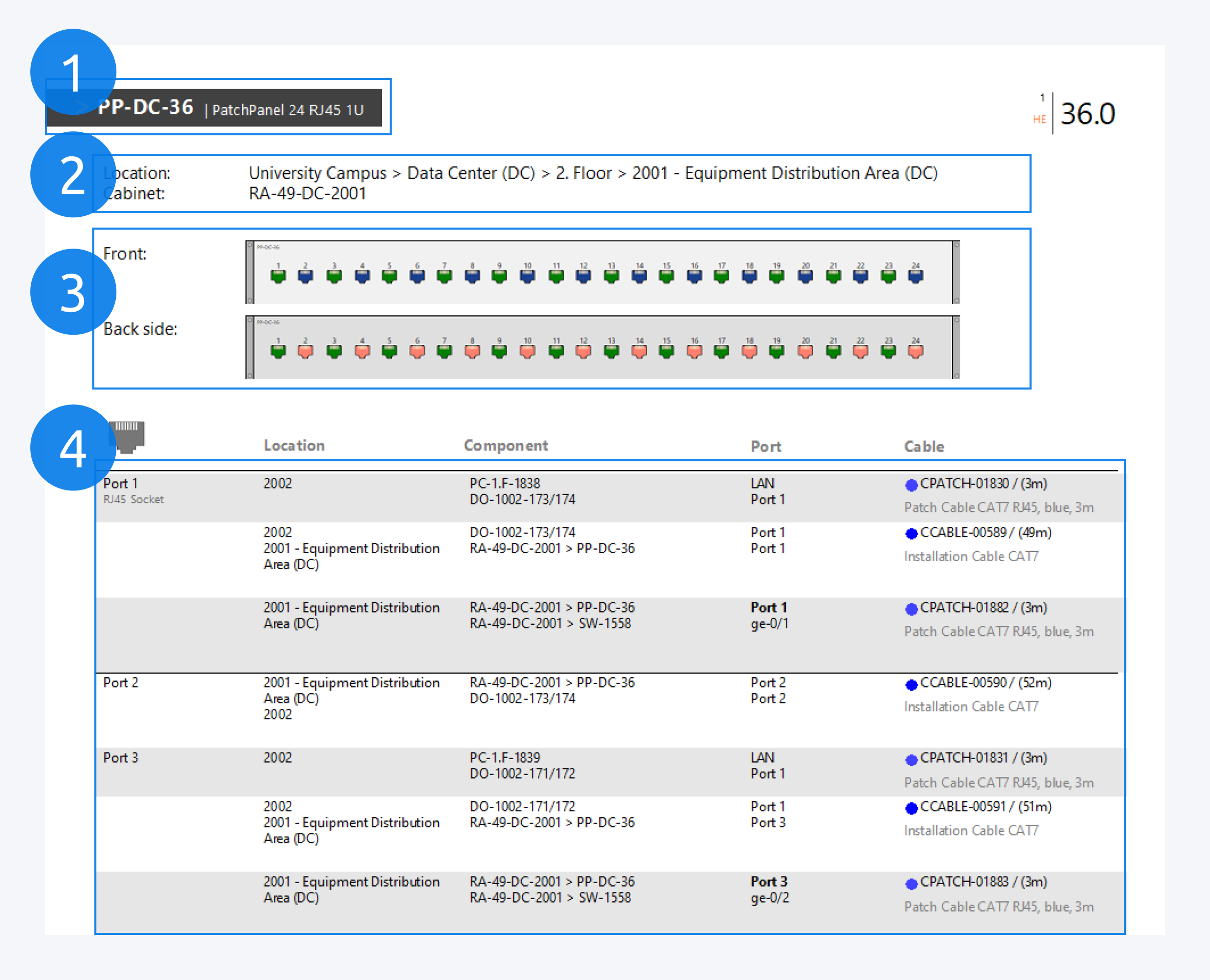

The component name is displayed in the top right corner (1). Its location information can be found below (2).

The following section contains pictures of both front and back side of the component (3).

Finally there is a list which contains the entire network path for each port (4). The port itself will be highlighted within the network path.
