Report: Network Overview

The network overview report includes both ends for each network path included in the selected object.

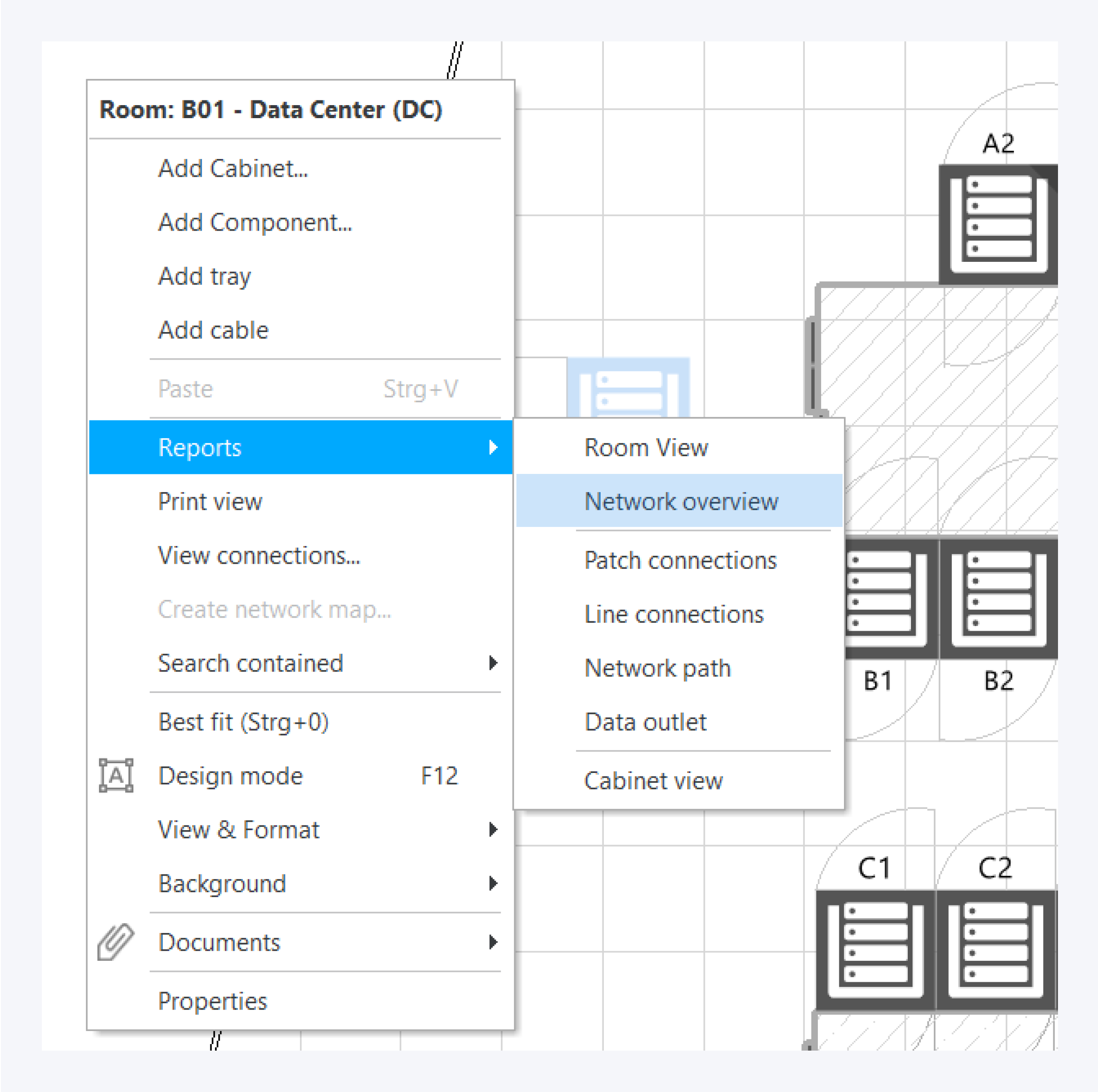

Right click on a cabinet, rack or component to open the context menu.

Select network overview from the reports options.

Generating the report

You can create a network overview report for any component, cabinet or location using the reports option from the context menu.

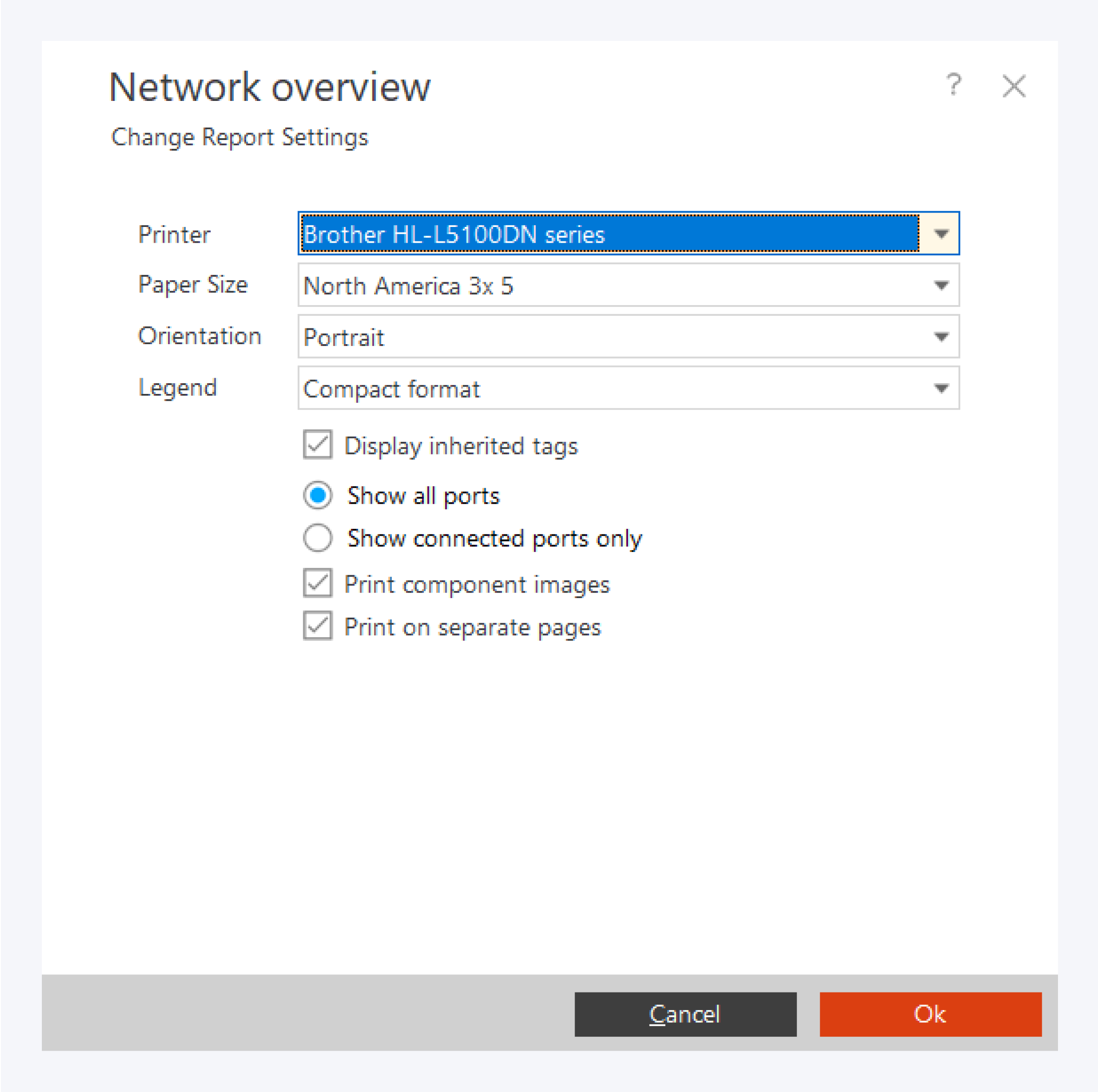

Report settings

In the report settings, you can choose the printer, paper size and orientation.

  • You can check the box to display inherited tags.

  • You can select how the legends are displayed.

  • You can choose between displaying all ports or connected ports only.

  • Finally you can check the two boxes to display the component images and print of separate pages respectively.

Click on OK to generate your network overview report.
