IP Address Properties

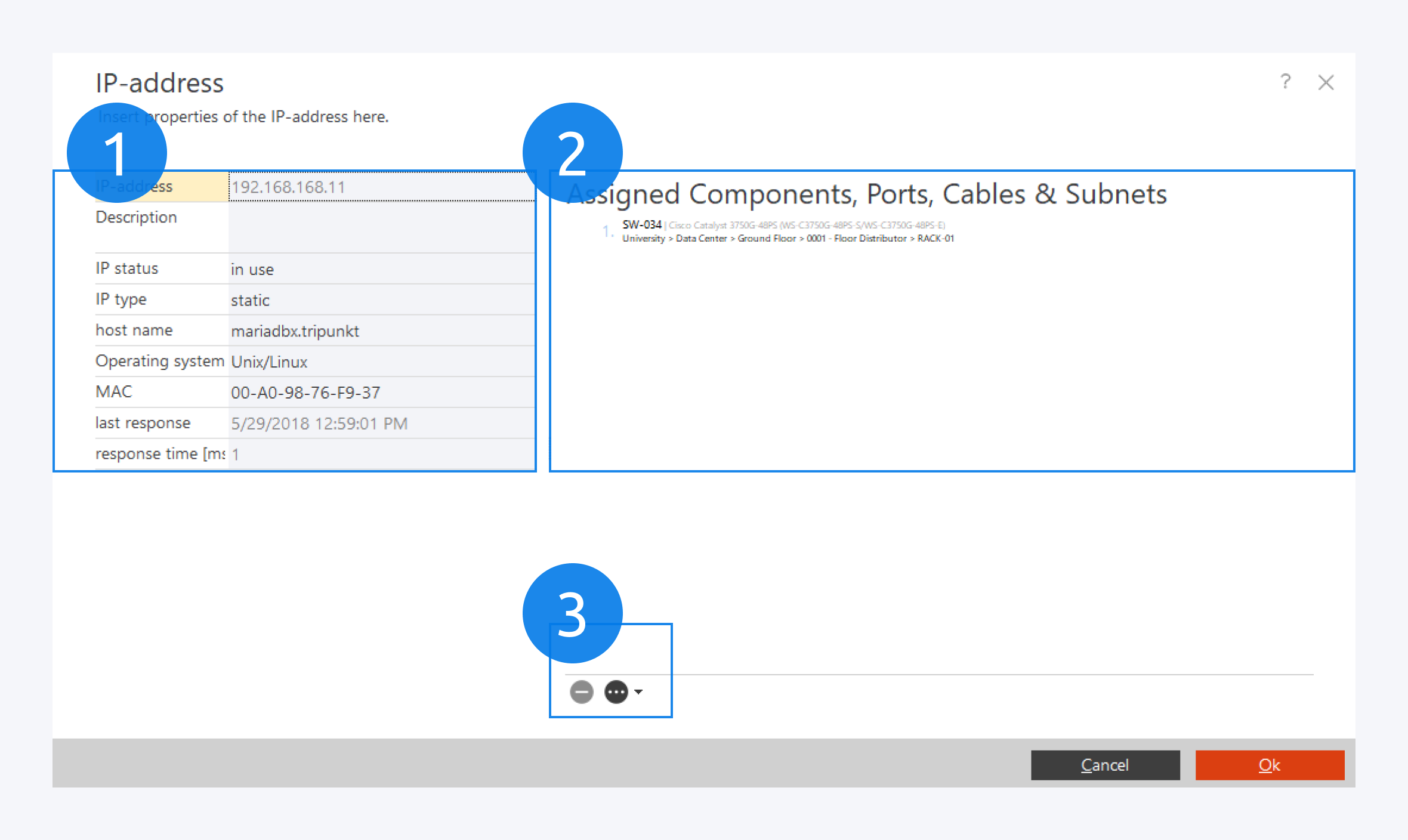

IP addresses have some useful properties. In order to access them, double click on an IP address in the subnet.

• You can write a description about the IP address. You can assign an IP status and type. You can assign host information and the MAC address as well (1).

• The component that this IP address is assigned to is displayed on the right (2). Double click that component to jump to it in the main window.

• You can delete an assigned component and view component and cable instances at the bottom (3).
