This pages describes how to import subnets in Pathfinder.
Select the import network cables option from the import and export section.
You can import subnets into your Pathfinder network to manage and create IP networks.
The ability to import subnets allows you to quickly and easily create a large amount of networks for use in Pathfinder.

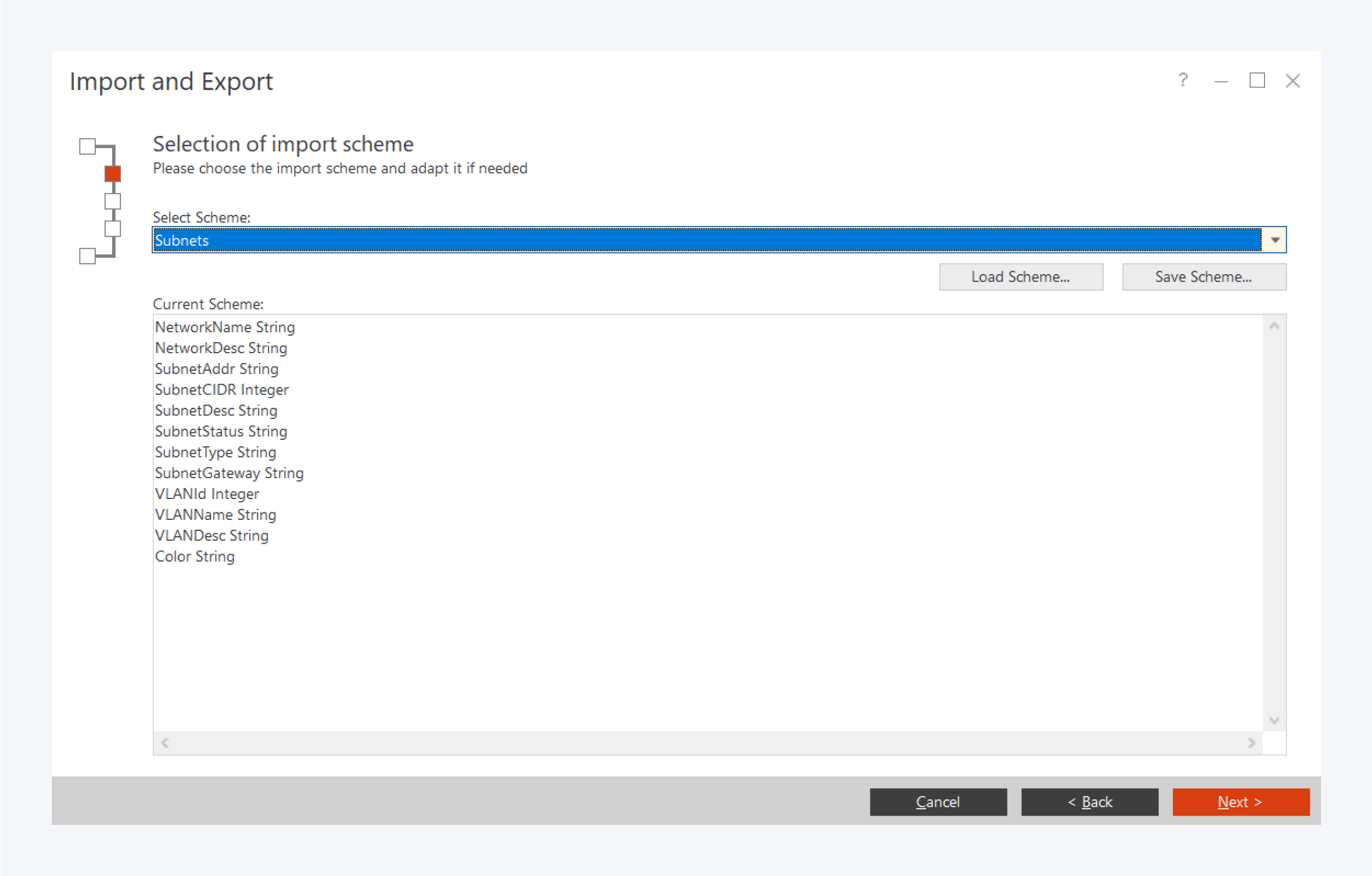

Select subnet scheme and click Next.
You can also load schemes and save as templates here.

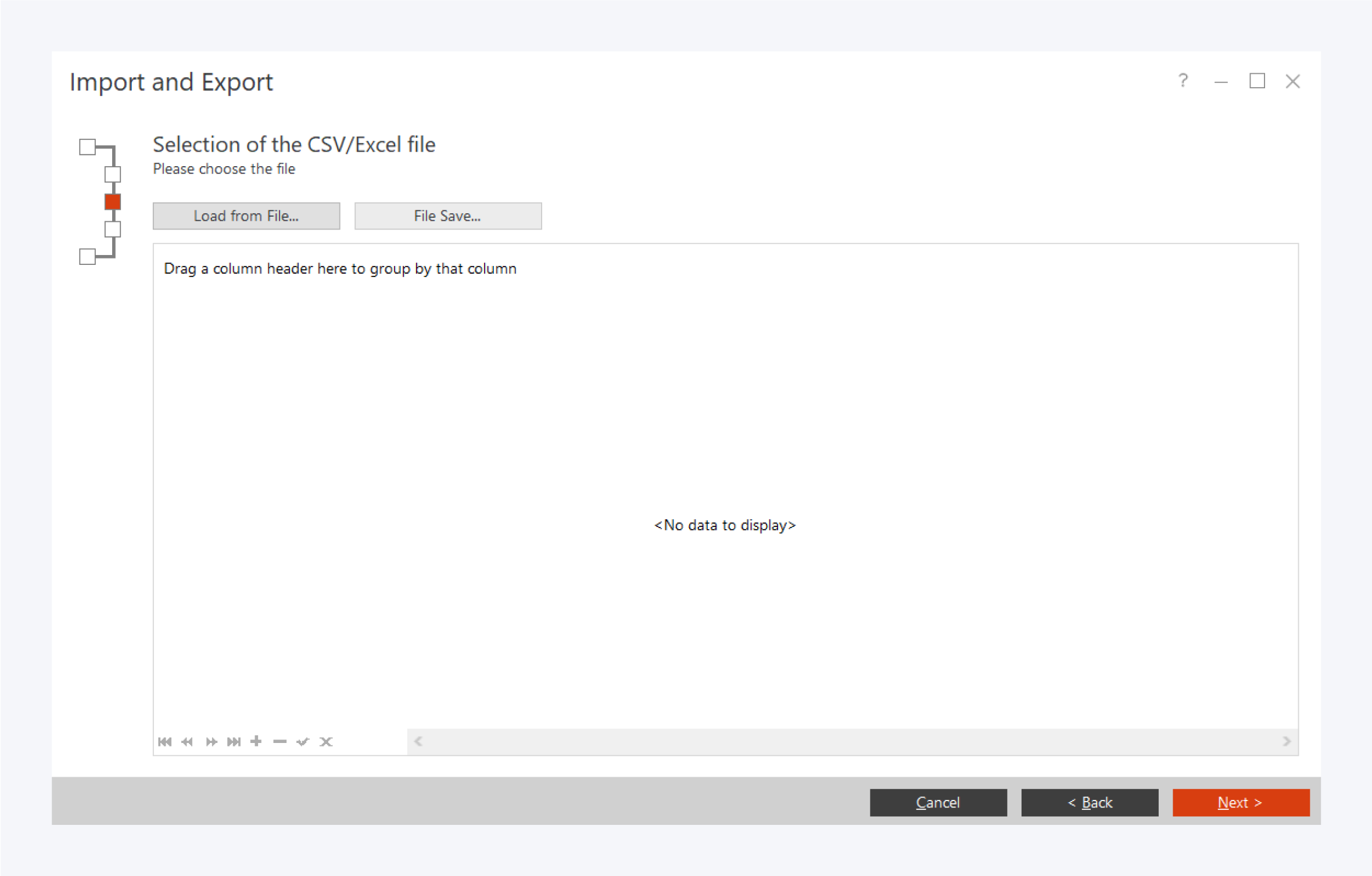

Click on load from file to import the file from your local system. The function supports Excel file types for import.
Click on in Pathfinder Next to execute the file import.
Please make sure to set your column headers with the same title as the current scheme. The fields are case sensitive.
Fields for Importing Subnets
The constants are unique names in the system and refers to an importable field. Identifying constants are used for clear distinction between entries.
IPv4- or IPv6-Adress
CIDR of the subnet (IPv4: 0-32, IPv6: 0-128)
in use: snetStatusInUse
Subnet gateway, IPv4- or IPv6-Adress (depending on the type of SubnetAddr)
ID of the assigned VLAN (0-4094)
Name of the assigned VLAN
Subnet color (e.g. "Red", "Green", "Blue". Also available: Html Hex Color Codes)
